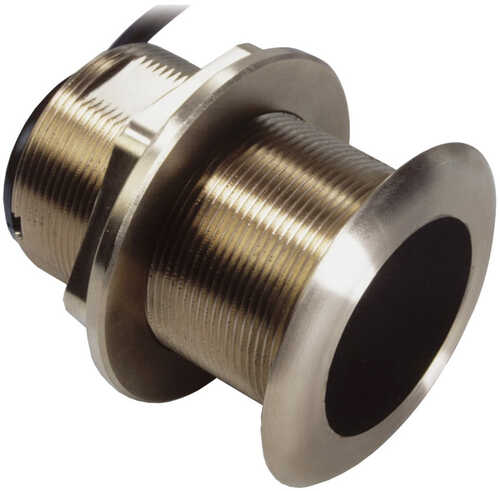

B60 Thru Hull Transducer 12° Tilt, 9-Pin Xsonic Connector, Depth & TemperatureThe B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 12° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth Features:The depth and fast-response water temperature sensing600 W of powerDual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') and 200 kHz with a 12° beamwidth for depth performance to 206 m (700')Perfect for center-console or trailered boatsLow-profile bronze housing extends only 5 mm (3/16") outside the hullNo effect on your boat’s running performanceBronze housing for fiberglass or wood hullFixed 12° tilted version for 8 to 15° hull deadrise anglesCable-Length: 10 m (33')Hole Size: 60 mm (2-3/8")Usable Shaft Length: 68.5 mm (2.70")Connector: Simrad 9-Pin, Lowrance 9-Pin, Navico 9-Pin
