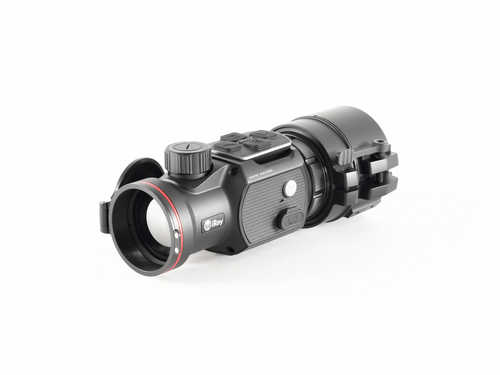

iRay USA Mate 640 3X 50mm Clip-On Thermal Weapon Sight 640x512
The InfiRay Outdoor MATE Series thermal clip-on brings an all-new level of versatility to your existingday scope. With a high-performance 12 µm detector, magnesium alloy housing, distortion-free display, and removable control pad, the MATE series ensures a precise and repeatable transition when dayturns to night. The MATE can be mounted directly to the objective of your day scope or be attached via MIL-STD-1913 Picatinny rail. Additional accessories, including an external LRF module and monocular extension, provide improved flexibility on your next hunt or trip to the range.
Specifications:
- Sensor Pixel Size: 12µm
- Objective Focal Length: 50mm
- Sensor Frame Rate: 50hz
- Detection Range: 2400 Yards
- Device Technology: Thermal Imaging
- Sensor Resolution: 640×512
- Optical Magnification: 1X
- Digital Magnification: 8X, stepped
- Onboard Recording: Yes
- Objective F#: 1.1
- Objective Diameter: 50mm
Optics:
- Objective Focal Length: 50mm
- Detection Range: 2400 Yards
- Objective Lens Material: Germanium
- Optical Magnification: 1X
- Digital Magnification: 8X, stepped
- Focusing Mechanism: Manual Focus
- Display Type: AMOLED
- Vertical Angular Field of View: 6.6°
- Horizontal Angular Field of View: 8.8°
- Objective F#: 1.1
- Objective Diameter: 50mm
- Display Resolution: 1024×768
Features and Performance:
- Wifi: Yes
- Image Capture: Yes
- Mobile App: Yes
- Connector Output: Power/Data
- Connector Type: USB-C
- Video Output: Analog RS-170/NTSC
- Onboard Recording: Yes
- Warranty: 5 Years
- Startup Time: Under 10 Seconds
- Rangefinder: ILR-1200-2 LRF (Optional/Not Included)=
- Color Palettes: White Hot, Black Hot, Red Hot, Color
- Storage Capacity: 32GB
- User-Updatable Firmware: Yes
- Power Source: Built-In Battery Pack (4+ Hours),IBP-4 Power Bank (6+ Hours)
- Stand-by Mode: Yes
- External Power Source: USB-C
- Country of Manufacture: China
Environmental Specifications:
- Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
- Operating Temperature Range: -4°F~122°F
- Ingress Protection: IP67
Physical:
- Mounting Interface: Picatinny STD-1913 rail
- Housing Material: Magnesium Alloy
- Weight: 18.70
- Height: 2.83
- Width: 2.44
- Length: 5.75
Sensor Specifications:
- Sensor Type: InfiRay MICRO II
- Sensor Pixel Size: 12µm
- Thermal Sensitivity: <25mk
- Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
- Spectral Response: 8-12 Microns
- Sensor Frame Rate: 50hz
- Device Technology: Thermal Imaging
- Sensor Resolution: 640×512
