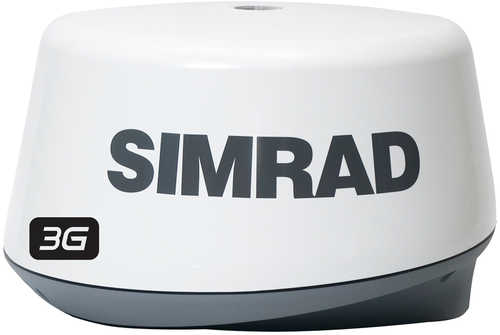

Broadband 3G™ Radar with 20M CableFaster, better, longer...Join the Broadband Radar™ revolution for superior short-range target detection and unrivalled target separation.Features:Crystal Clear ImagesZero Radiation HazardInstantOn™Low Power ConsumptionMount AnywhereQuick InstallationUnrivalled Short-Range Performance10 MARPA TargetsNow with 30% more rangeBroadband 3G™ Radar allows you to see more targets farther away from your boat. Now you get the same impressive short-range capabilities of the original Broadband Radar™ with the addition of exposing targets previously unseen before.Unparalleled Short Range Target Discrimination - Where it Matters MostSimrad Yachting's Broadband Radar™ provides amazing target resolution, even at an unprecedented 1/32 nm range. Docks, channel markers, moored vessels and other critical targets are displayed with clarity and separation, for added confi dence in close quarters. Broadband Radar™ technology also eliminates the "main bang" of a pulse radar - the obscured "dead zone" immediately around the vessel - which interferes with close target detection.Lowest RF Transmission for Safe, Flexible InstallationBecause Simrad Broadband Radar™ transmits at 1/10,000 the power of typical pulse radars (emitting 5 times less energy than an average cell phone), the radome is safe to mount in locations never before possible. In addition, the lowest DC power draw of any X-band marine radar makes this system ideally suited for sailboats and other vessels with limited power.Navigation in an InstantNo more waiting 2-3 minutes for a magnetron to warm up - 100% solid-state design provides InstantOn™ capability. When darkness falls or the fog rolls in, you will always be ready. Ideal for sailboats wishing to save power, or boats at anchor not wishing to run the radar continuously.Specifications:RADARAntenna Beam Width Horizontal 5.2°+/-10% (-3dB width)°Antenna Beam Width Vertical 25°+/-20% (-3dB width)°Antenna Receiver Noise Figure 6 dBAntenna Rotation Speed 24/36 rpm +/- 10% RPMsRadar Warm Up Time 0 minRadar Wind Resistance 51 m/sec (Max:100 Knots)COMMUNICATIONTransmitter Frequency X-band - 9.3 to 9.4GhzTransmitter Power Output 165mW nominalData I/O Protocol High Speed EthernetTECHNICAL / ENVIRONMENTALMounting Bolts: 4x30xM8 - 304 stainless steelWaterproof Standard IPX6Height 280 mm \ 11 inDiameter 488 mm \ 19.2 inWeight 7.4 kg \ 16.31 lbsHumidity +35°C (95xF) 95% RHPOWERPower Supply 9V to 31.2Vdc (12/24 Volt systems) Reverse polarity protection vDCPower Consumption 18W (Typ.) @ 13.8VdcPower Consumption Standby 2W (Typ.) @ 13.8Vdc - only 150maGENERALCompliance CE, FCC (ID: RAY3G4G), IC: 4697A-3G4GOTHERInterconnection Cable 20M (66ft) standard with RJ45 thin custom (Max 30m)Interface Heading SimNet or NMEA 0183 with cable kit into displayOperating Temperature -25° to +55°C (-13° to +130°F)
