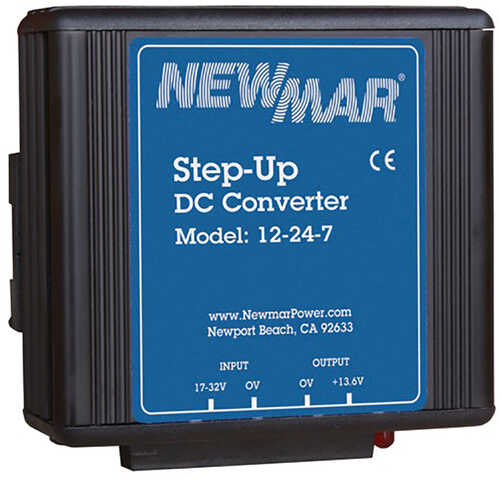

12V-24V 7 Amp Converter for DRS12AX X-Class Open Array - NewmarNewmar 12-24-7 Step Up Dc-Dc Converter 7amp Conitnuos
These "UP" converters produce 24 volts from 12 volt systems and are ideal for managing dual voltage applications on marine vessels without having to install a 24 volt battery and dedicated charging system. Choose from two types depending on your application:
In the Standard, Non-Isolated Series the 12V input and 24V output share a common negative ground and are ideal when installing certain electronics that operate better on 24 volts when a robust 12 volt system exists. Models available in outputs of 7, 16 and 25 amps.
Standard, Non-Isolated Series
Intended for use on negative ground systems10 -15 VDC input range
7 Amp outputCurrent limited, voltage spike suppression, automatic thermal shutdown and recoverySpecifications:Input: 10 - 15V DC
Output: 27.2 VDC +/-5% at extreme temperature load, input, tolerance, etc.
Ripple: <100mV P-P
Regulation: +/- 5% Line/Load
Duty Cycle:Intermittent: 2 minutes, 20% duty
Continuous: 24 hours, 100% duty
Operating Temp: -25º - 30º C, derate linearly from 30 to 0% @ 80º C
MechanicalEfficiency: 93% - Typical.
Anodized aluminum, glass filled polycarbonate, dust water and impact resistance to IP533
Front panel terminal block
Output indicator: Green LEDWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
